P0340 Code: Camshaft Sensor Circuit Checks Before Replacement

Read the complete P0340 description

P0340 concerns the camshaft position sensor circuit. The general definition in Innova's code list is a circuit malfunction; the vehicle's own description may identify a sensor and bank more precisely. For example, Ford's 2024–2025 gasoline documentation identifies P0340 as the Bank 1 intake cam position circuit.

Use that exact engine's component information to locate the sensor. A photograph from another model, or a blanket passenger-side rule, is not enough. The model year and engine identification are essential when requesting a diagnosis or ordering any confirmed replacement.

Circuit fault, timing fault or intermittent signal?

Similar-looking codes can lead to different tests. P0340 is a circuit result. Innova lists P0341 separately for range/performance and P0344 for an intermittent circuit. P0011 concerns camshaft timing or system performance on Bank 1. Copy the actual code rather than shortening all of these to “cam sensor.”

This distinction also prevents an expensive assumption: P0340 is not, by itself, proof that the timing chain has failed. A mechanical repair needs supporting findings from the correct diagnostic procedure. Keep any accompanying timing or crankshaft codes in the report so the workshop can assess the whole pattern.

Record what happens when you try to start

Tell the repairer whether the engine starts normally, cranks without starting, takes longer than usual, or stops after starting. Record whether the problem occurs cold, hot or intermittently, and mention recent engine or wiring work. These are observations to investigate, not a diagnosis of their cause.

Save the complete scan before erasing codes. Bosch's freeze-frame explanation shows why: recorded operating conditions may be lost when faults are cleared. Include the recorded engine speed and the code associated with the frame, instead of forwarding only a cropped P0340 screenshot.

If P0300 random/multiple misfire or P0301 cylinder 1 misfire is also present, provide those results too. Do not assume that the camshaft circuit explains every symptom or that a separate warning can be ignored.

What should be tested before replacing the sensor?

The circuit includes more than the sensing element. Ford's published CMP pinpoint test, for its 1999 applications, separates Hall-effect and variable-reluctance sensors and follows different branches. Its checks include power and ground where applicable, circuit continuity, and shorts. These historical instructions demonstrate why a single voltage or resistance value should not be used for every vehicle.

Useful questions for the workshop are:

• Which sensor type and wiring diagram apply to this engine?
• Was a connector or wiring fault found, or did the sensor fail a specified test?
• Was the fault present during testing, or does it require an intermittent-fault investigation?
• What evidence supports any additional mechanical or control-module repair?

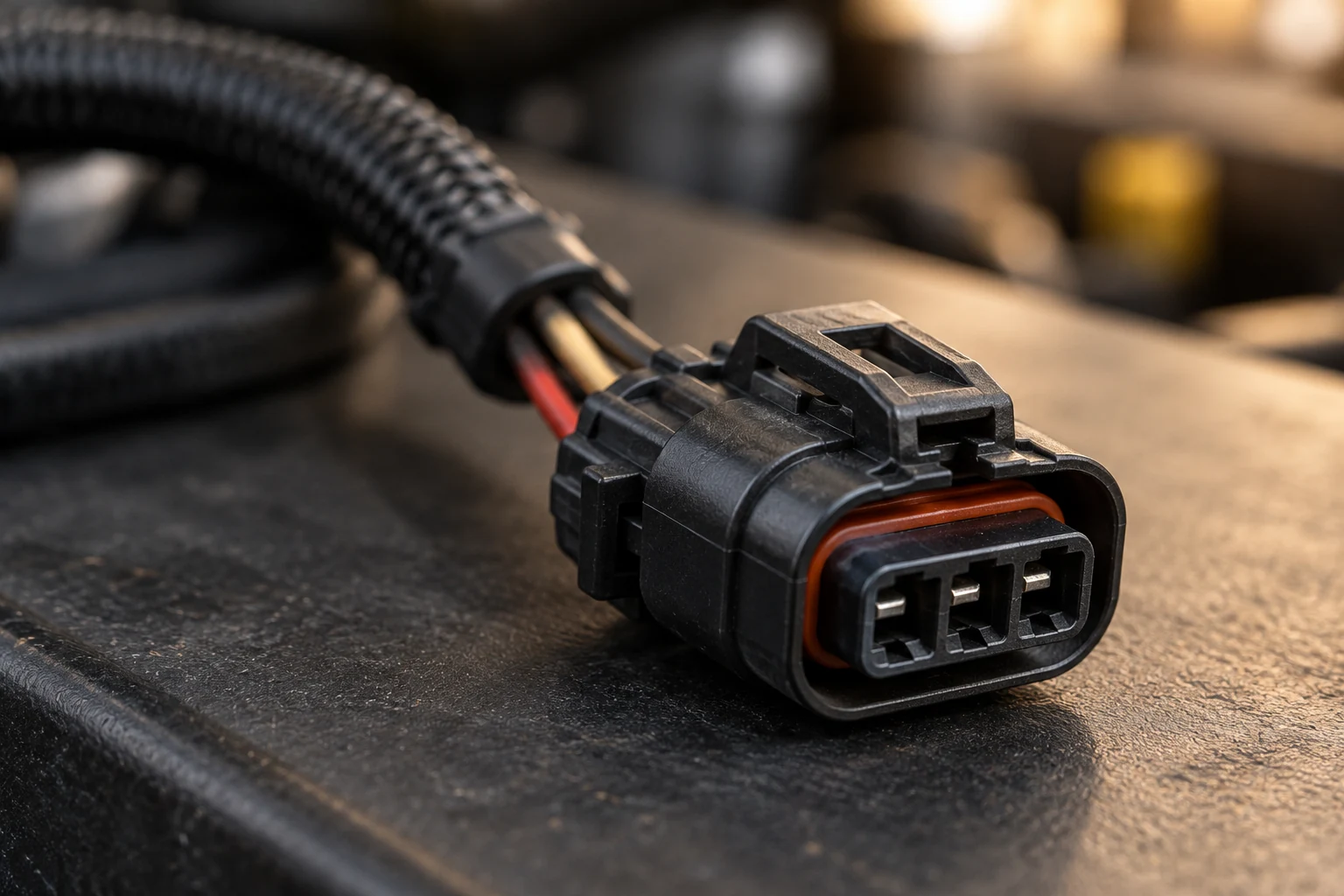

An owner can photograph visible external damage with the engine switched off and cool. Leave unplugging inaccessible connectors, terminal probing and running-engine measurements to qualified service. A connector that looks clean is not proof of a sound circuit, and wire colours from an online picture are not a pinout.

A Challenger example where software was involved

Chrysler bulletin 18-010-13, dated March 6, 2013, describes a software update for certain 2011–2012 LC Challengers with a 5.7-litre EZC or 6.4-litre ESH engine and a six-speed manual DEC transmission. It addresses P0340 under specific diagnostic conditions.

The bulletin requires the technician to consider other faults and check the stored freeze-frame engine speed. Its software route applies when the specified conditions are met, including a recorded speed of 500 rpm or less. A higher recorded speed directs the technician back to normal diagnosis.

This example is not a general P0340 reset method. Ask a dealer to check the VIN and current software information; do not attempt a module flash from a historical bulletin alone. It also does not promise warranty coverage. The useful lesson is that a sensor purchase should follow the applicable diagnosis, not simply the code's name.

Driving and repair verification

Arrange prompt assessment. If the vehicle stalls, repeatedly fails to start or loses power severely, seek assistance rather than trying to complete a drive cycle. There is no reliable safe mileage allowance that can be inferred from P0340 alone.

For a flashing engine lamp, follow the owner's manual immediately. Ford's warning-lamp instructions associate flashing with possible misfire and catalyst damage. Do not work near moving engine parts or continue a test journey when serious symptoms appear.

After the repair, request a brief record of the cause, the work completed and the verification result. If the original problem was an intermittent hot-start failure, mention that when discussing how the repair will be checked. A normal start on one occasion is useful evidence, but it does not reproduce every condition in which the warning first occurred.
